CTA Signal Modelling


Can we create a supervised learning model for a CTA Strategy using the approaches below?

  • Chronological data splitting
    • To prevent data leakage and simulate proper back testing
  • Random up sampling (non-synthetic)
    • To handle class imbalance
  • Modelling with features transformation via ensemble tree algorithms

Key Task Inputs:

  • Dates
    • Validation Start
    • Holdout Start
    • Holdout End
  • Optimization Metric (Accuracy, Precision, Recall, F1, Neg Log Loss)
  • Training Frequency (Year, Quarter, Month, Day)


  • Predicted Signals for either Long or Short
  • Aggregated metrics for Validation vs Holdout
  • Confusion matrices for Validation vs Holdout
  • Finalized model hyperparams

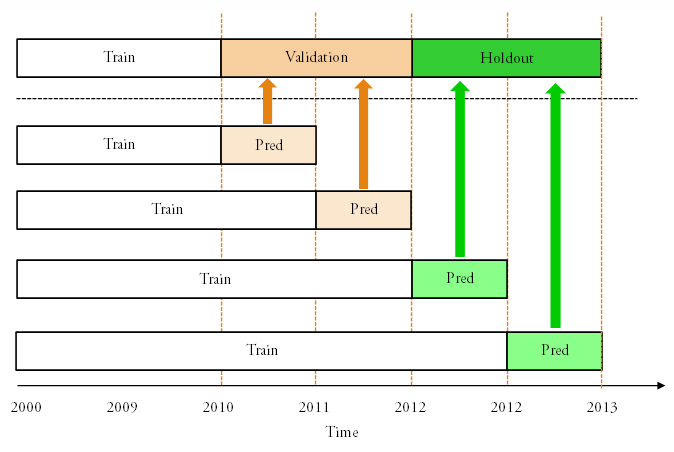

Chronological Data Splitting

  • Chronological data splitting into train/validation/holdout splits
  • Assumes back testing with fixed time interval of model retraining
    • Yearly
    • Quarterly
    • Monthly
    • Daily
  • Validation Period:
    • Predictions during this period are scored and used for hyperparameter tuning
  • Holdout Period:
    • Predictions during this period are recorded but not used for any tuning

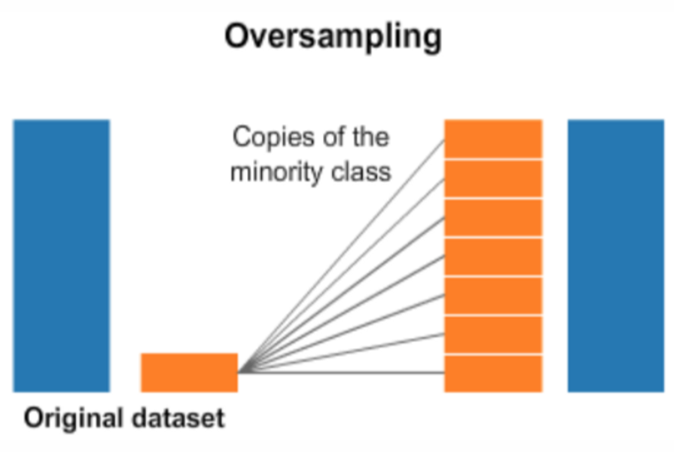

Random Up sampling (non-synthetic)

  • Signal modelling is a binary classification problem
  • CTA assets’ signals tend to be very imbalanced (around ratio of 1:4)
    • Applying ML model directly will result in prediction of majority class most of the time
  • Approach
    • Non-synthetic randomized up sampling is performed of the minority class to ratio 1:1
    • Up sampling implementation is done with reproducible randomized seed

Modelling Methodology

Model Framework

  • Inputs -> Feature Transformation (FT) Ensemble Trees model -> One Hot Encoding -> Final Predictive Model

FT Ensemble Tree model:

  • Utilize a supervised learning ensemble tree algorithm for feature transformation
  • Approach:
    • Trained on training data first (and never exposed to test data)
    • Subsequently used as a feature transformation step where:
      • Preprocessed data is fed into the model
      • Leaves from each tree are used as input features in the next model
  • Helps capture non-linearity relationship in data while acting as a form of regularization

Final Predictive Model:

  • State of the art gradient boosted tree algorithm
  • Takes in the one-hot encoded feature transformed data from previous layer and performs binary classification prediction

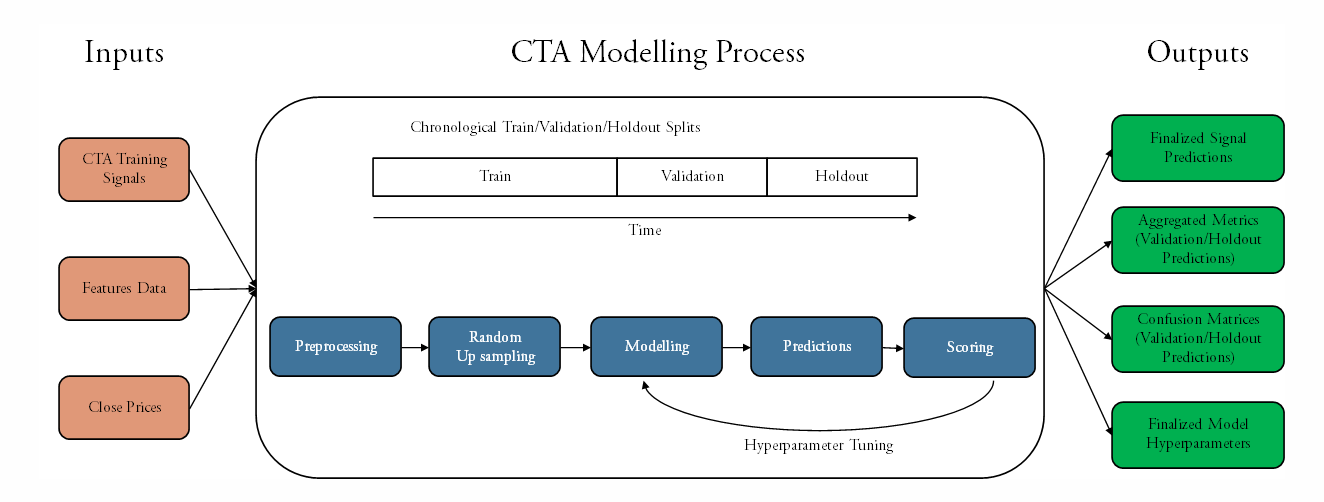

CTA Modelling Process

Precision Charts

Precision = (𝑻𝒓𝒖𝒆 𝑷𝒐𝒔𝒊𝒕𝒊𝒗𝒆)/(𝑷𝒓𝒆𝒅𝒊𝒄𝒕𝒆𝒅 𝑷𝒐𝒔𝒊𝒕𝒊𝒗𝒆) for combined predictions in Validation and Holdout periods for each signal position (Long/Short)

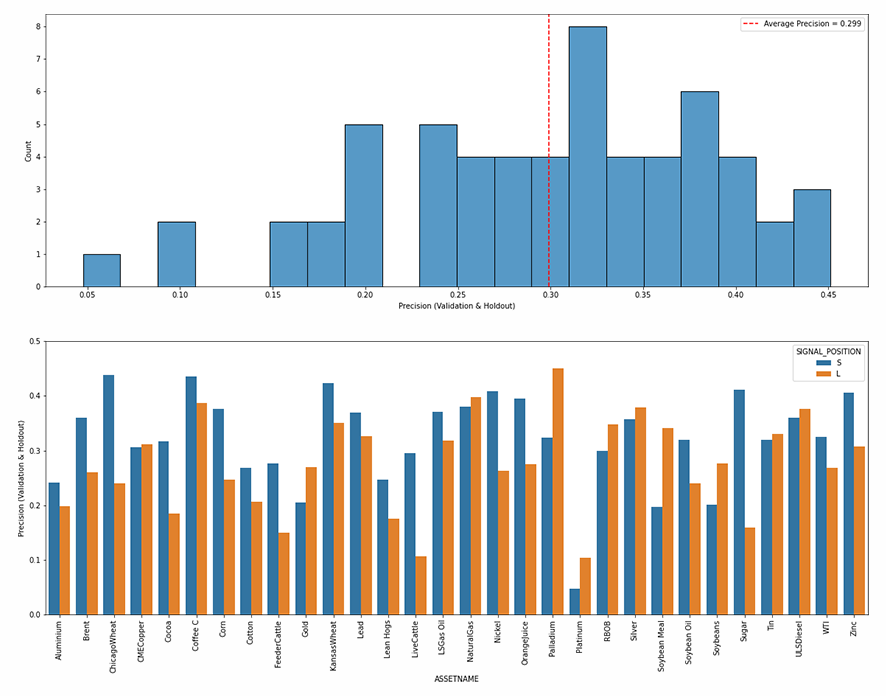

Chart 1: Histogram of Precision:

  • 30 assets x 2 signal positions = 60
  • Average = 0.299
  • Mode is between 0.30 to 0.35

Chart 2: Precision Bar chart per Asset

  • Each asset has two precision values (one for each signal position)
  • Most assets have similar precision results for both signal positions
